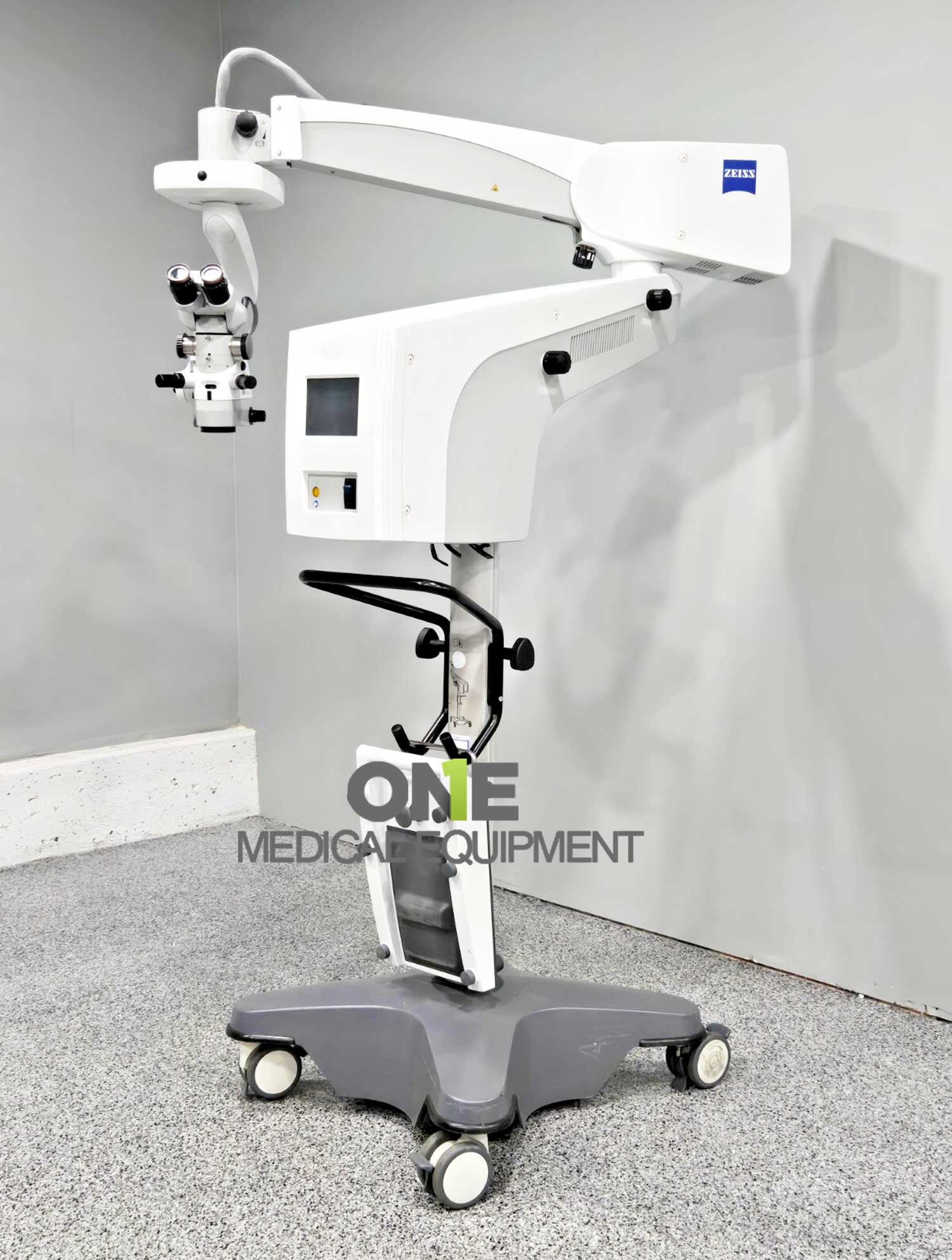

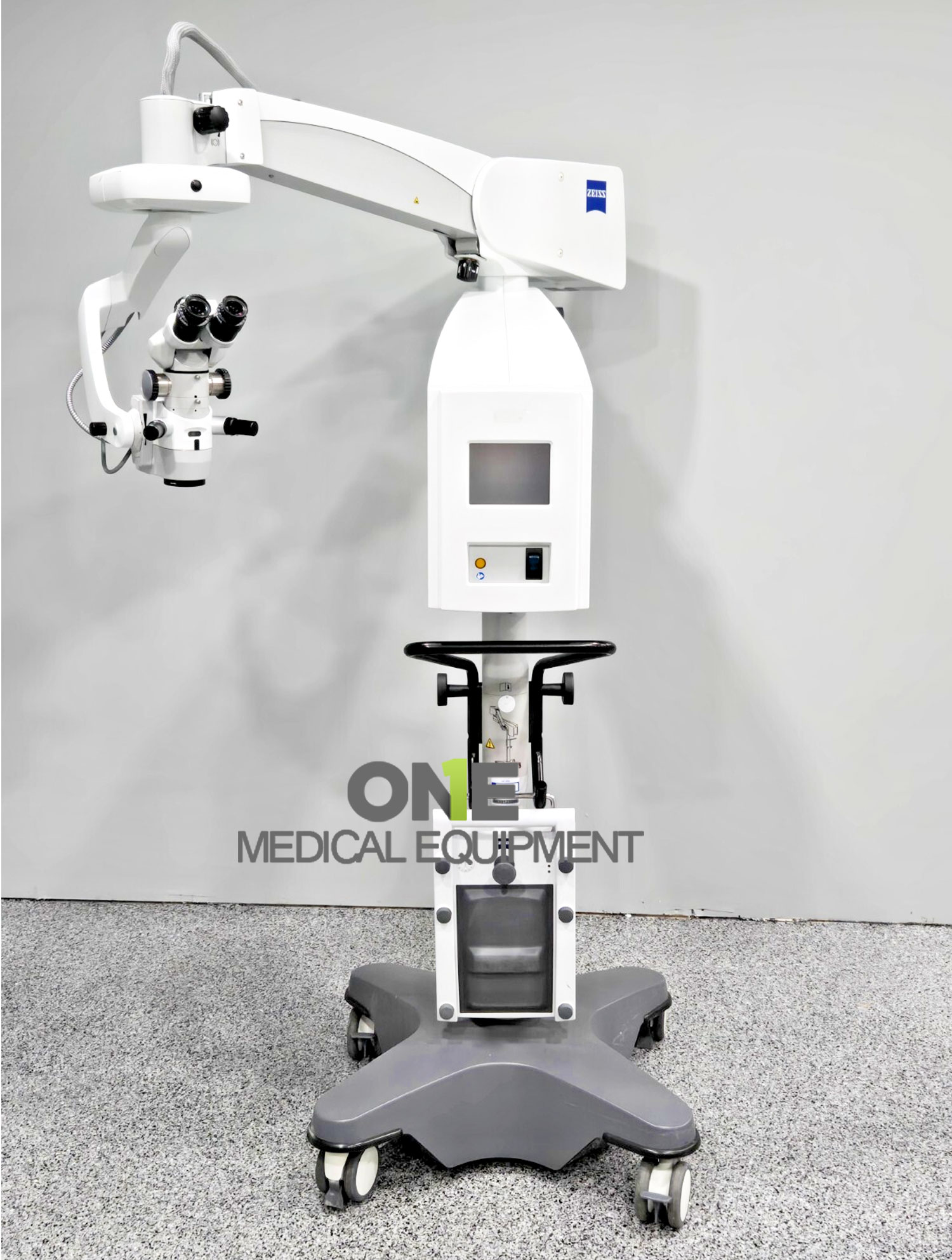

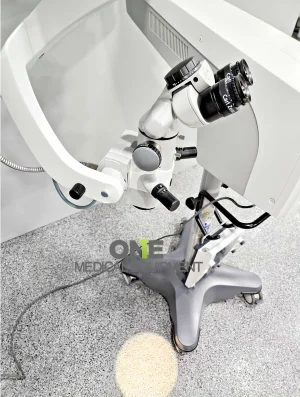

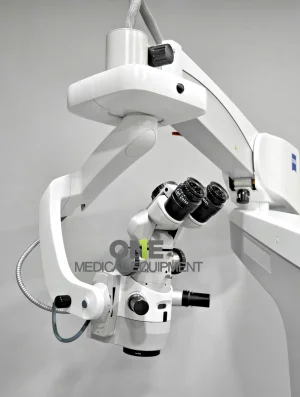

ZEISS OPMI Lumera i S7 Surgical Microscope, fully refurbished to OEM specifications.
With many preventative maintenance parts replaced and updated, motors/drives lubricated and adjusted, switches and buttons serviced, internal and external optical glass cleaned and aligned, as well as completed functionality test check list provided.
The Lumera i microscope is used for ophthalmology surgery such as refractive surgeries (like LASIK), cataract surgery, glaucoma, retinal, corneal, eyelid surgery, and eye muscle surgery.
Technical data:
Surgical microscope
- Apochromatic optics
- Motorized zoom system, 1:6 zoom ratio, magnification factors γ = 0.4 to 2.4
- Focusing range: 50 mm
- Binocular tube: 0-180° tiltable tube (optional Invertertube)
- Eyepieces: 10 x (12.5 optional)
- Objective lens f = 200 mm (f = 175 mm optional)
- DeepView: depth of field management system
- Optional: Resight 500 fundus viewing system
Illumination
- SCI: red reflex illumination and full field illumination, both are adjustable, patent pending
- Integrated 408 nm UV barrier filter
- Blue blocking filter
- Retinal protection device
- Fiber optic illumination
- Optional: fluorescence filter
Lightsource
- 12 V, 100 W halogen light source with fully automatic lamp change in case of lamp failure
X-Y Coupling
- 61 mm x 61 mm adjustment range Free programmable button for starting positions of X-Y coupling, focus and zoom, light

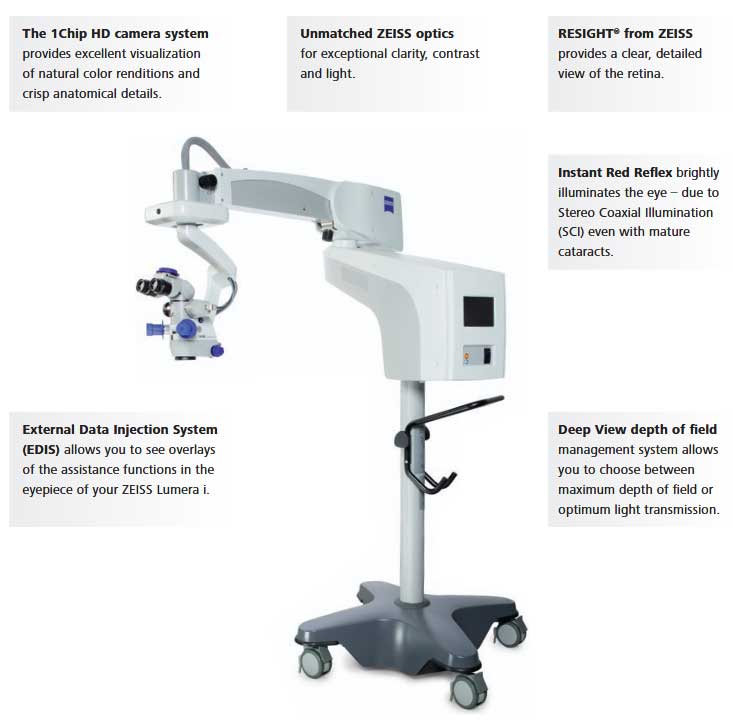

ZEISS OPMI Lumera i High quality visualization
ZEISS OPMI Lumera i
Shedding light on the details for better decision making
The OPMI Lumera i from ZEISS delivers high-quality visualization technology. The Stereo Coaxial Illumination (SCI) will make a difference in how well you see the details – for better decision making. See overlays of the assistance functions in the eyepiece with the External Data Injection System (EDIS).
- Visualization
- Centrally controlled
- Small and easy to move
The OPMI LUMERA family from ZEISS represents excellence in optics and illumination. The ZEISS OPMI Lumera i with ZEISS high-quality visualization technology, including Stereo Coaxial Illumination (SCI), will make a difference in how well you see the details during cataract and retina surgery.
- See the most minute structures during surgery
- Identify the details of the retina
- See overlays of the assistance functions in the eyepiece
- Manage depth of field with a push of a button
- View structures in the eye in natural colors
