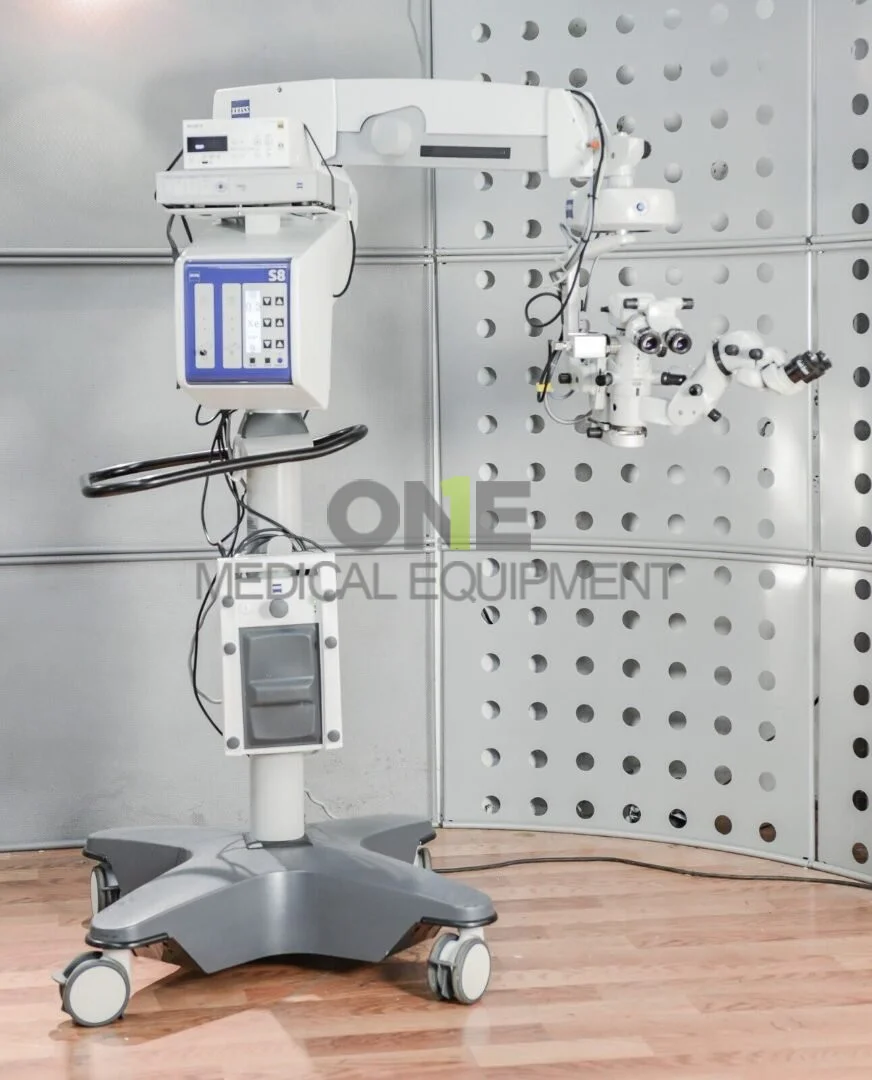

Zeiss OPMI Lumera T S88 Surgical Microscope Superlux Eye Trio 600. Everything is in excellent condition from working facility. Patient ready microscope operating at full factory specifications. Ideal for cataract and other ophthalmology procedures as configured.
The Zeiss Lumera T S88 is an outstanding microscope designed for a full suite of cataract and other ophthalmic procedures, the best in red reflex technology with the introduction of Lumera Stereo Coaxial Illumination you see more contrast with this brilliant, stable red reflex – even in decentered or strongly pigmented eyes. The Lumera T S88 floor stand provides superior surgeon control from the ergonomic hand grips to release the magnetic clutch brakes moving the microscope across the surgical field with minimal effort. Program the Lumera T S88 with up to 9 different users with preset motorized speeds, illumination intensity and foot pedal controls.
Spesifications
Surgical Microscope
- Apochromatic optics
- Motorized Zoom: 1:6 zoom ratio
- Magnification Factors: 0.4 to 2.4>
- Focusing Range: 50 mm

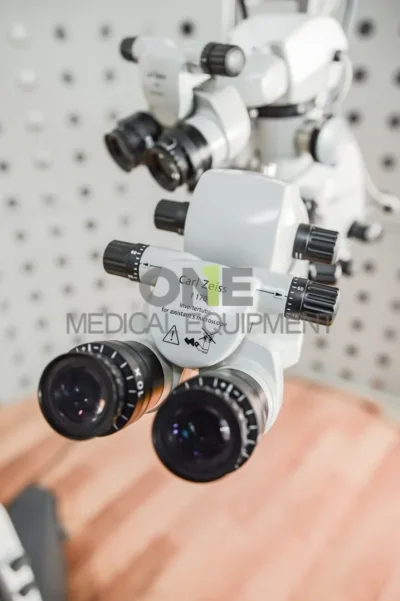

- Binocular Tube: Invertertube (optional 0-180° tiltable tube)
- Eyepieces: 10x (12.5x optional)
- Objective Lens: f = 200 mm (f = 175 mm optional)
- DeepView: Depth of field management system
- Integrated assistant’s microscope
- Fully Stereoscopic
Illumination
- SCI: red reflex illumination and surrounding field illumination, both dimmable, patent pending
- Retinal protection device
- Fiber optic illumination
- Light Source
Light Source

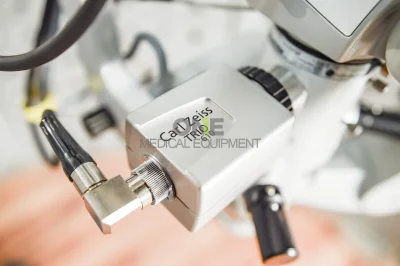

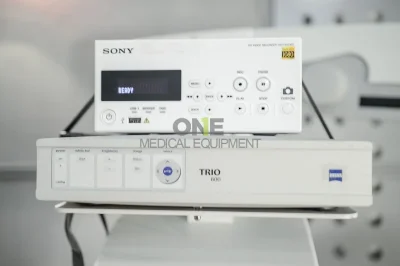

- Superlux Eye Trio 600 xenon Light Source with manual bulb change
- HaMode filter
- Optional: 12V, 100W halogen Light Source with fully automatic bulb change in case of lamp failure
- Option: dual halogen Light Source
- Optional: xenon / halogen combi Light Source
- Integrated 408 nm UV barrier filter
- Blue-blocking filter
- Optional: fluorescence filter
X Y Coupling
- 40 mm x 40 mm adjustment range
- Button for starting positions of the X-Y coupling and focus
Suspension System

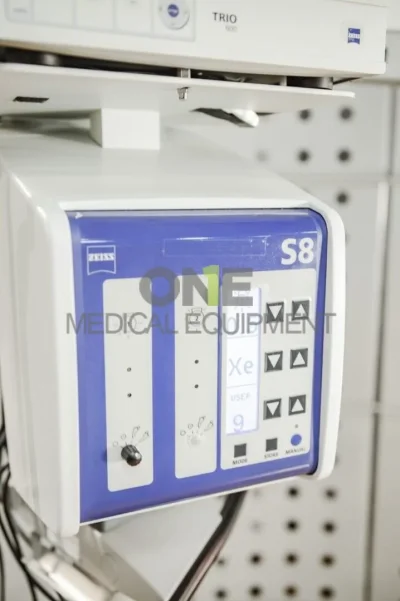

- S88 floor stand
- S8 ceiling mount
- S81 ceiling mount
- Maximum load: 20 kg (44.1 lb) (complete microscope equipment, including accessories)
Weight
- 13.7 kg (30.2 lb) (with Invertertube, integrated assistant’s microscope, objective lens, and eyepieces)
