Including Camera Nikon D70s, Computer, Monitor and Printer included
Manufacturer: KOWA

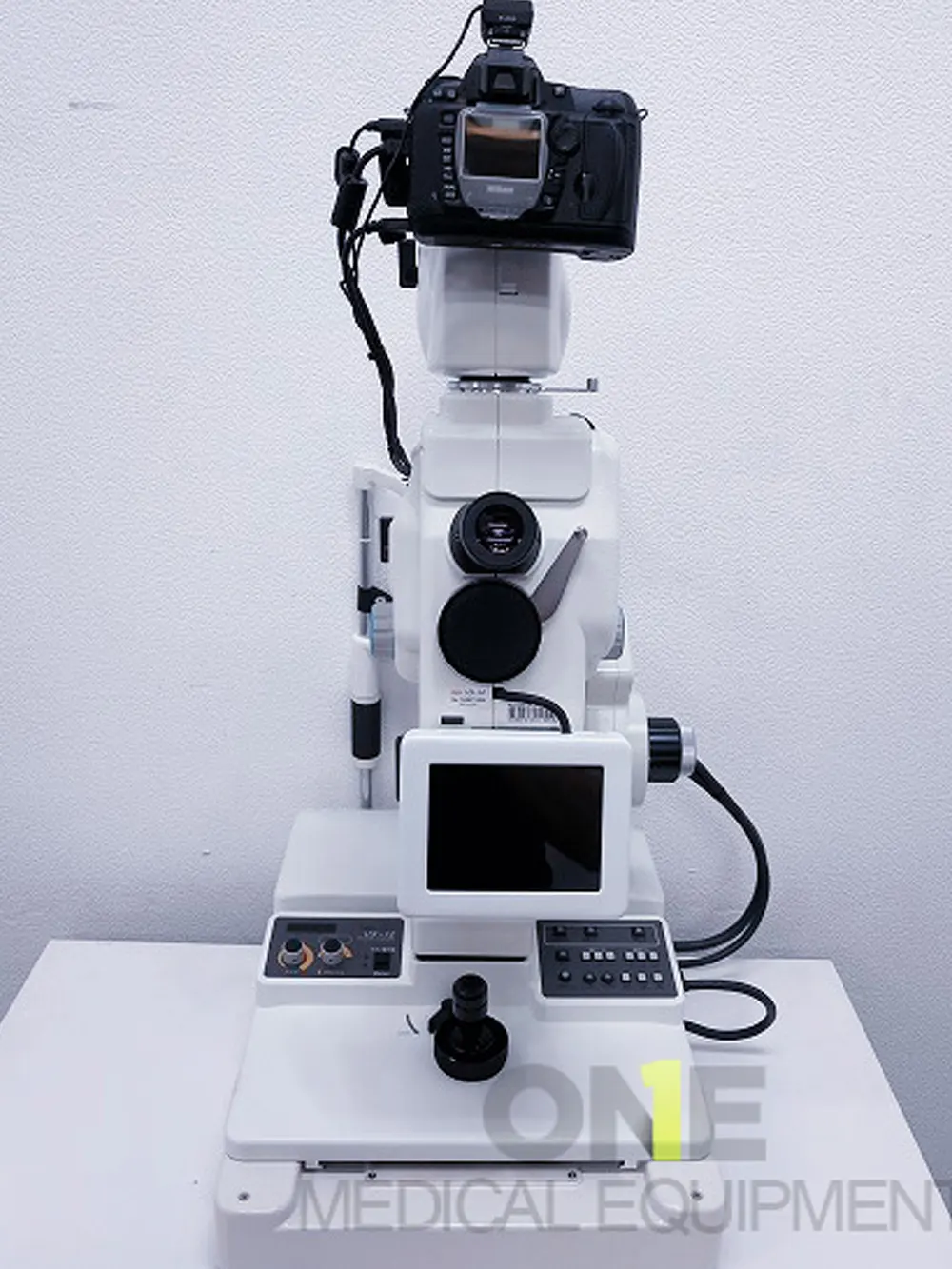

Model Name: VX-10 Non-Mydriatic Fundus Camera
Year: 2009
Condition: Excellent used & certified ready to working order
*** More photos available upon request
Powerful, flexible and patient and practitioner friendly, Kowa's high performance ophthalmic digital imaging system integrates the most advanced components and systems technology that makes this system an indispensable tool for today's practitioner. The system offers an ideal digital imaging enviroment with multiple digital/video image inputs and networking capabilities.
KOWA VX-10 Fundus Camera Features
- Digital ready
- 50 degree / 30 degree mydriatic mode
- 45 degree / 27 degree non-mydriatic mode
- FA / Color
- Pre-selected flash output
- Built-in LCD monitor for non-mydriatic mode
- Working distance dots
- Alignment dots
- Compact size
KOWA VX-10 Fundus Camera Specifications
- Field Angle Mydriatic 50°=> 30° degree, Non Mydriatic 45 degree 27 degree
- Photographic Magnification* 50° => (2.0X) 30°=> (3.0X)
- Picture Size 35mm film 26 mm x 22 mm oval
- Polaroid film (myd) 84.5 mm (ver 71.5mm, hor 79mm max) (nonmyd) 76.1 mm (ver 71.5 mm, hor 76 mm)
- Working Distance 39mm (between objective lens and cornea)
- Minimum Pupil Diameter Nonmydriatic mode : 4mm
- Mydriatic Mode: 5.5mm
- Small Pupil Mode: 4mm
- Focusing Luminescence Point matching method (ON / OFF switch)
- Diopter Compensation Range (Patient's eye) -12D ~ +13D
- +10D ~ +35D (with + compensation lens)
- -32D ~ -10D (with - compensation lens)
- Diopter Adjustment Range - 8D ~ +5D
- Working Distance Adjustment Luminscent Point Display ( ON / OFF switch)
- Viewing Illumination 12V 100W halogen lamp
- Flash for Photography 300WS xenon flash lamp
- Internal Fixation Lamp 4 fixed dots right or left eye switching
- Amount of Exposure 300WS ~ 0.6WS, 19 steps
- Proper Exposure Automatically set based on angle of field and film sensitivity.
- Filter Barrier & Exciter filter Electronic powered insertion
- Fluorescein Photography Photographic interval: 1 frame/sec
- 5.6 inch LCD monitor, B & W alignment, color capture display
- Data Imprinting Timer and handwritten data
- Audible Warning End of film, timer counter ( ON / OFF selectable)
- Tonal Volume Adjustment Function
- Film Speed 35mm color film ISO 100; Fluorescein ISO 400 (3 times sensitized)
- Polaroid film ISO 600
- Adjustment Range Forward / Backward (gross) 90mm (micromotion) approximately 22mm
- Left / Right (gross) 140mm (micromotion) aprrox 22mm
- Up / Down 30mm
- Tilt ( - angle) 15 degree (+ angle) 8.5 degree
- Horizontal Swing (Left / right ) 30 degree
- Power Supply Input 117VA / 60Hz
- Dimensions 400 (W) x 520 (D) x 752 (H) mm **
VK-2 DIGITAL IMAGING SOFTWARE
- Fast Patient Set-up
- On Screen Stereo Viewing
- Easy Operation
- Multi-video Input
- FA / Color / ICG / Slit Lamp
- Complete Image Manipulation
- Network Ready
- Telemedicine Ready
- True Merge Function
